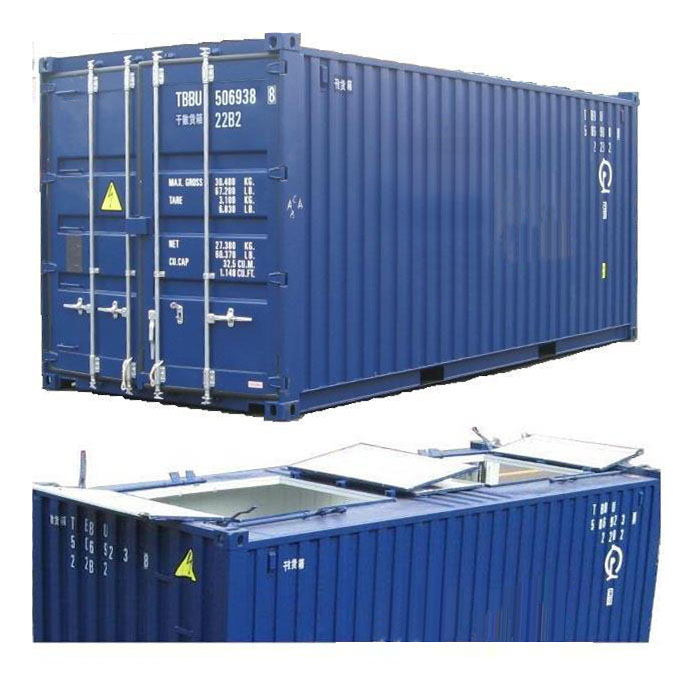

20’ Dry Bulk Container-20’干散货箱
发布日期:2019-11-18 浏览次数: 字号:[ ]



TYPE 箱型

22B2

External 箱外

Side Door Opening

侧开门尺寸

Hatch Opening(Roof)

人孔尺寸

Length

长度

Width

宽度

Height

高度

Width

宽度

Height

高度

Width

宽度

Length

长度

6,058 mm

2,438 mm

2, 591 mm

2,340 mm

2,308 mm

1,400 mm

1,765 mm

20'

8

8- 6

7' -8 1/8"

7'-6 55/64"

4' -7 1/8"

5'-9 31/64"

Internal 箱内

Weights  重量

Length

长度

Width

宽度

Height

高度

Max Gross Weight

最大总重

Tare Weight

自重

Max Payload

最大载重

5,901 mm

2,371 mm

2,324 mm

30,480 Kg

3,100 Kg

27,380 Kg

19' -4 5/16"

7'-9 11/32"

7'-7 15/32"

67,200 Lbs

6,830 Lbs

60,370 Lbs

Cubic Capacity容积

Allowable Stacking Weight 允许堆码重量

32.5 cu.m

1,148 cu.ft

192,000 Kg

423,280 Lbs

Special Feature  特点

1. Two hatches on the roof, and 8 safe-guard man-hole bolts inside.

顶部有1个人孔。

2. Smooth steel floor and internal wall.

箱内角落均有倒角。
